Informações do Produto
HIKVISION CAMERA IP BULLET DS-2CD1023G0-IUF AUDIO 2MP 2.8M | Flytec Computers

Verifique a disponibilidade com seu vendedor

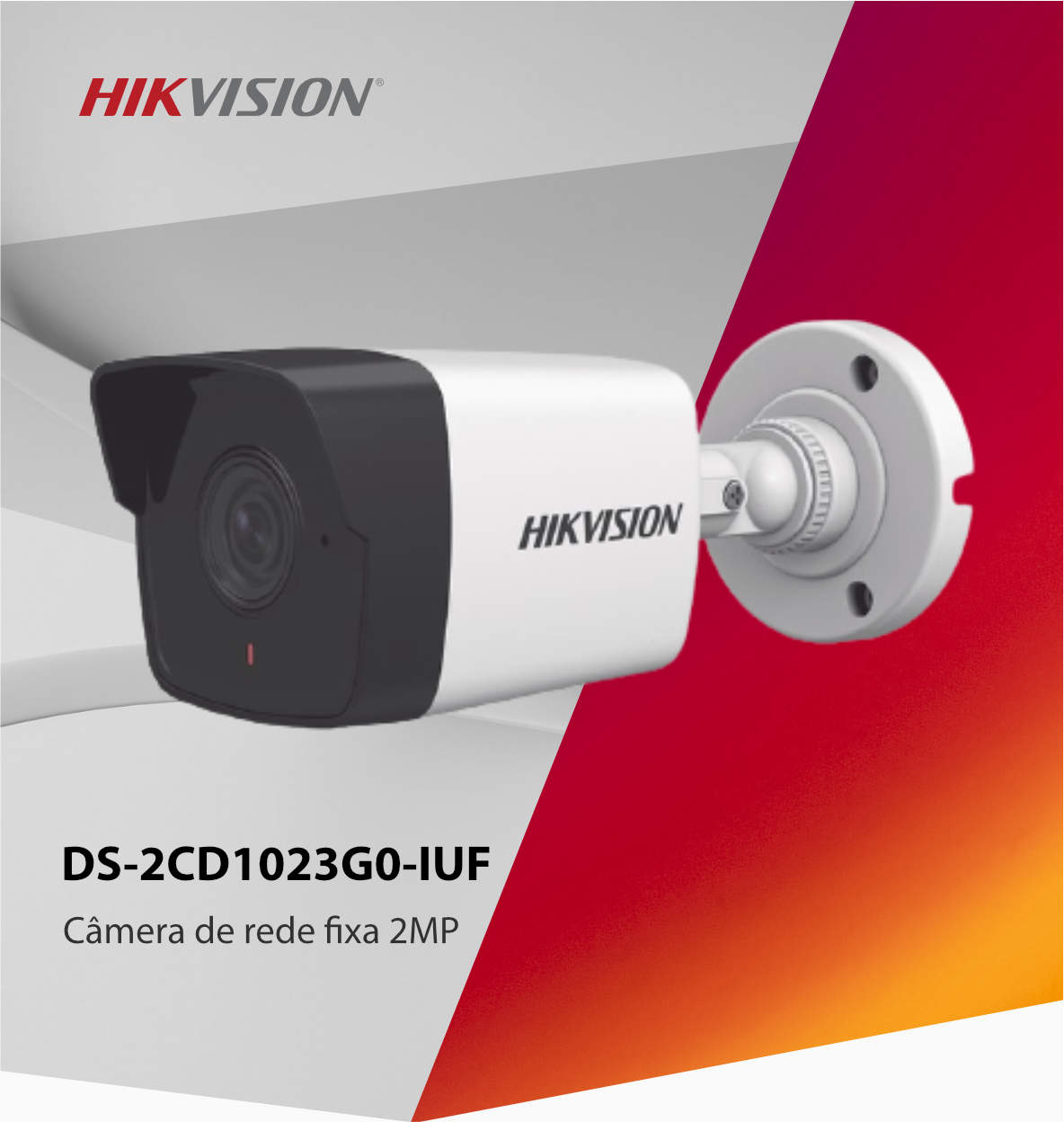

  HIKVISION CAMERA IP BULLET DS-2CD1023G0-IUF AUDIO 2MP 2.8M
Código: 68601
clique na imagem para ampliar
u$ 38,50

PREÇOS ESPECIAIS PARA REVENDEDORES

DS-2CD1023G0-IUF



Câmera de rede fixo de áudio externo de 2 MP







Características Principais



  • Sensor CMOS de varredura progressiva de 1 / 2.7 ″.
  • Resolução 1920 × 1080 @ 30fps
  • Lente fixa de 4 mm (pedido 2,8 mm)
  • Sensibilidade 0.01Lux@F2.0
  • Infravermelho 30m
  • DWDR, BLC, 3D DNR
  • Slot para cartão MicroSD 256 GB (máx.)
  • Microfone integrado
  • Fonte de alimentação 12VDC, PoE
  • IP67, 177,6 mm × 66,2 mm × 67,8 mm, 270g
  • Categoria: 2 linhas IP, câmera, câmera IP





Especificações



Camera
Image Sensor 1/2.7″ Progressive Scan CMOS
Min. Illumination Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR DWDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Lens Type Fixed lens, 2.8/4 mm
Aperture F2.0
FOV 2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°

4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 1920 × 1080
Main Stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Audio(-U)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-Set
Basic Event Motion detection, video tampering alarm, exception (illegal login)
Linkage Method Upload to FTP, notify surveillance center, send email, trigger capture
Region of Interest 1 fixed region for main stream and sub-stream
Image Enhancement BLC, 3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance

adjustable by client software or web browser
Day/Night Switch Day/Night/Auto/Schedule
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
API ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: administrator, operator and user
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Interface
Communication Interface 1 RJ45 self-adaptive Ethernet port
Audio 1 audio input (built-in microphone), mono sound
Interface Style Pigtail style interface
General
Firmware Version 5.5.83
General Function One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP

address filter
Reset Reset via web browser and client software
Startup and Operating -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Conditions
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.3 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.0 W
Material Front cover: metal, back cover : plastic
Dimensions Camera: 67.8 × 66.2 × 177.6 mm (2.7″ × 2.6″ × 7″)

With package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.6″)
Weight Camera: Approx. 270 g (0.6 lb.)

With package: Approx. 470 g (1 lb.)
Approval
  47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,

EMC EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:

  2015, KN 35: 2015
Safety UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am

1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Chemistry 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Protection Ingress protection: IP66 (IEC 60529-2013)
